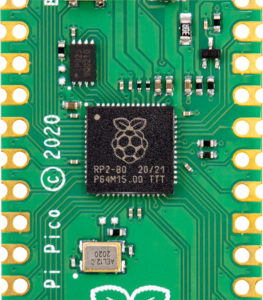

RP2040 Development Board
The brand new microcontroller designed and manufactured by Raspberry Pi RP2040. It embodies a dual-core Arm Cortex-M0+ processor with 264KB internal RAM. You can attach up to 16MB of off-chip Flash. On the board, there are a lot of programmable I/O ports and communication ports such as I2C and SPI. All of these features are packed in a very small board that can fit in every project. You can program it like an Arduino or you can write your code on a MicroPython text file and pass it to the Raspberry Pi Pico like a thumb drive.
[/vc_column_text][/vc_column][/vc_row][vc_row gap=”35″][vc_column][basel_title tag=”h2″ align=”left” title=”Raspberry Pi Pico Board Pinout”][vc_single_image image=”2024″][/vc_column][/vc_row][vc_row full_width=”stretch_row” gap=”30″ content_placement=”middle” css=”.vc_custom_1618682615351{padding-bottom: 30px !important;background-color: #1d7ba5 !important;}”][vc_column width=”1/2″][basel_title color=”white” tag=”h2″ align=”left” title=”Specifications”][vc_column_text]
- 21 mm × 51 mm form factor
- RP2040 microcontroller chip designed by Raspberry Pi in the UK
- Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
- 264KB on-chip SRAM
- 2MB on-board QSPI Flash
- 26 multifunction GPIO pins, including 3 analogue inputs
- 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
- 1 × USB 1.1 controller and PHY, with host and device support
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
- Supported input power 1.8–5.5V DC
- Operating temperature -20°C to +85°C
- Castellated module allows soldering direct to carrier boards
- Drag-and-drop programming using mass storage over USB
- Low-power sleep and dormant modes
- Accurate on-chip clock
- Temperature sensor
- Accelerated integer and floating-point libraries on-chip
[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_single_image image=”2025″ img_size=”full” alignment=”center”][/vc_column][/vc_row]
