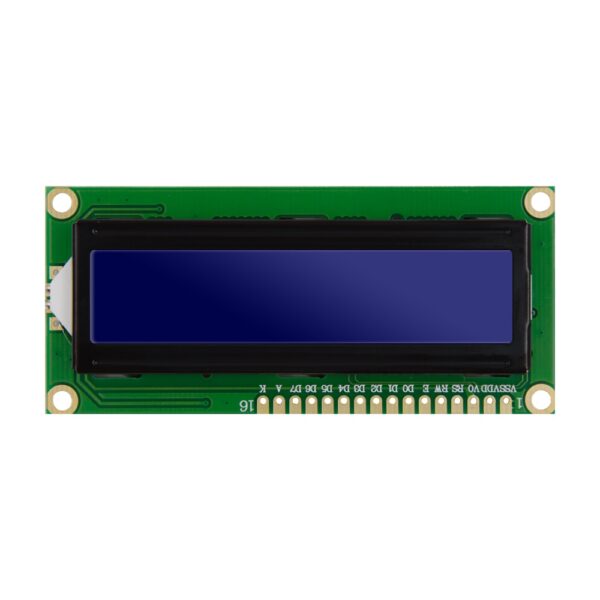

LCD 1602 Display Module 3,50 € incl. VAT 24% (ΦΠΑ)
Next product
RoboMaterial PN532 NFC RFID Module PN532 NFC RFID Reader Writer Module V3 10,00 € incl. VAT 24% (ΦΠΑ)
RoboMaterial Ultrasonic Sensor US-015 Module
RoboMaterial Ultrasonic Sensor US-015 Module
RoboMaterial Ultrasonic Sensor US-015 Module
Click to enlarge

Ultrasonic Distance Sensor US-015

3,20 € incl. VAT 24% (ΦΠΑ)

The US-015 Ultrasonic Distance – Measurement Module can detect distances ranging from 2cm and up to 4m (700cm stable). It can be used with any microcontroller such as Arduino. It has 4 pins, 2 of which are for 5v power (VCC – GND) and two pins for data. Specifically, it can be used in a great variety of projects like robots or any other automation. Also, it is widely used for education due to the ease of use. It is very similar to HC-SR04 module, it has although some differences in range, resolution and frequency.

Σε απόθεμα

Add to wishlist
Κωδικός προϊόντος: RM-SSR-US-0015 Κατηγορίες: , Ετικέτες: , , ,
Περιγραφή

Περιγραφή

The US-015 Ultrasonic Distance – Measurement Module can detect distances ranging from 2cm and up to 4m (700cm stable). It can be used with any microcontroller such as Arduino. It has 4 pins, 2 of which are for 5v power (VCC – GND) and two pins for data. Specifically, it can be used in a great variety of projects like robots or any other automation. Also, it is widely used for education due to the ease of use. It is very similar to HC-SR04 module, it has although some differences in range, resolution and frequency.

Specifications

  • Resolution up to 0.5 mm
  • Can realize 2 cm to 4 m non-contact ranging function, the power supply voltage is DC 5 v, working current is 2.2 mA, support GPIO communication mode
  • Operating temperature:0~+70°
  • Output mode: GPIO
  • Detection angle: less than 15°
  • Detecting precision: 0.1cm+1%
  • Size: 45mm*20mm*1.2mm
Επιπλέον πληροφορίες

Επιπλέον πληροφορίες

Βάρος 0,02 kg
Διαστάσεις 4,5 × 2 × 0,15 cm
